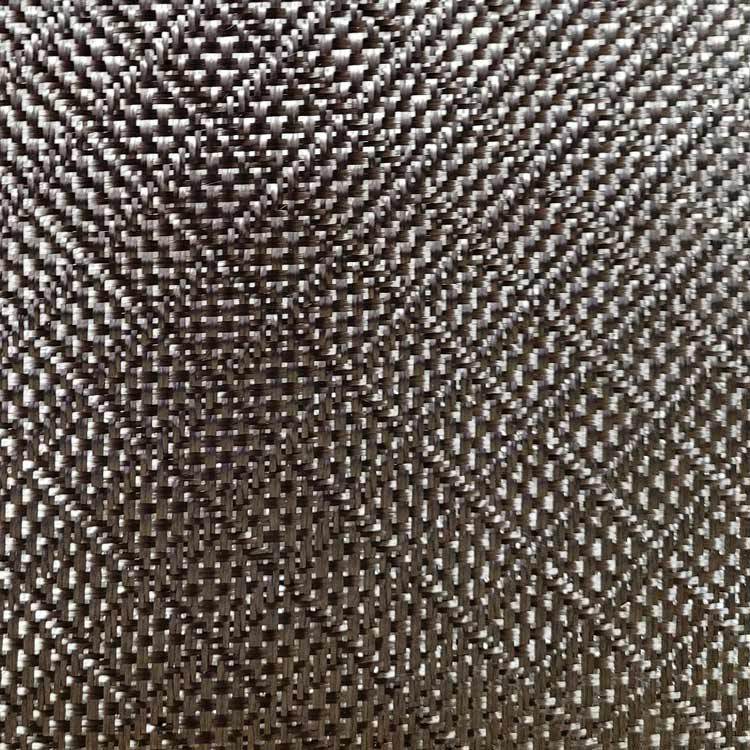

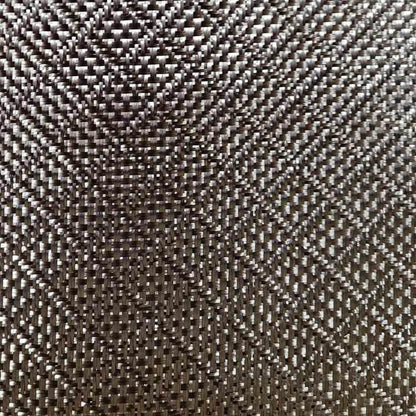

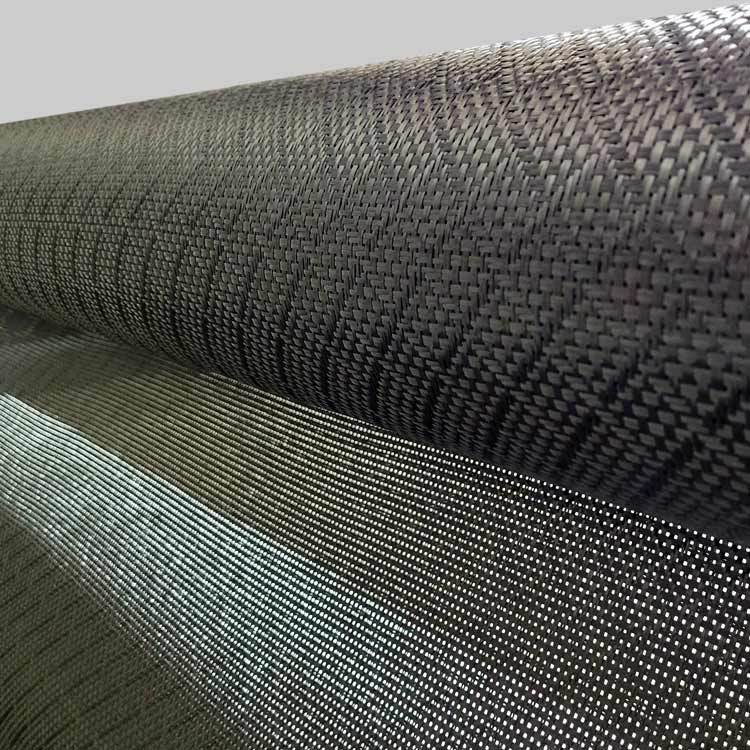

M-Boss Pattern Carbon, 3K, 6 oz/sq yd, 50" Wide

Woven with 3K Multifilament Continuous Tow, these fabrics provide all the performance benefits you've come to expect with carbon fiber, but now in exciting new patterns. These fabrics will provide distinct, contemporary looks to your modern composite components in aerospace, marine, sporting goods, and racing industries. These carbon fiber fabrics are compatible with all the resin systems on our website, including epoxy, polyester and vinyl ester.

M-Boss Pattern Carbon, 3K, 6 oz/sq yd, 50" Wide Features

• 3K Multifilament Continuous Tow
• Designer Carbon Fiber Fabrics offer the same construction and fiber content in both warp and fill directions as typical 3K fabrics in the 5.7 oz. weight range.
• Unmatched cosmetic characteristics
• 7 exciting designs to choose from

M-Boss Pattern Carbon, 3K, 6 oz/sq yd, 50" Wide Tips

• Use as a surface layer in cosmetic applications
• During lay-up, add layers at alternating 45-degree angles to maximize strength.
• Use with epoxy resin, polyester resin, or vinyl ester resin to produce composite parts of excellent strength, low weight, and outstanding cosmetics.
• To maximize strength in parts, use with an epoxy, like our System #2000.

M-Boss Pattern Carbon, 3K, 6 oz/sq yd, 50" Wide Specifications

Roll Width	50" Wide
Roll Length	25 yards
Weight	204 GSM
Weave Pattern	Textral Weave
Count Ends	13.0 x 13.0

Fibre Glast Guarantee

Fibre Glast is committed to ensuring that every roll of fabric we handle is First Quality and manufactured to the highest standards, so that you can expect the same properties and handling characteristics every time you order.

Click here for more information on our First Quality Guarantee.

What is MBoss Pattern Carbon Fiber Fabric?

The MBoss Pattern Carbon Fiber Fabric (#1208) from Fibre Glast is part of the Contemporary Carbon Fiber Styles collection. Woven with 3K Multifilament Continuous Tow, this fabric provides all the performance benefits of carbon fiber in the MBoss pattern. These Designer Carbon Fiber Fabrics offer the same construction and fiber content in both warp and fill directions as typical 3K fabrics in the 5.7 oz weight range at 50-inch width.

What Are the Best Applications for MBoss Carbon Fiber?

MBoss carbon fiber provides distinct, contemporary looks for modern composite components in the aerospace, marine, sporting goods, and racing industries. The fabric is well suited for use as a surface layer in cosmetic applications.

How Should MBoss Carbon Fiber Be Used for Best Results?

Compatible with all the resin systems on the Fibre Glast website, including epoxy, polyester, and vinyl

ester. To maximize strength in parts, use with an epoxy like Fibre Glast System 2000 (#2000). During lay-up, add layers at alternating 45-degree angles to maximize strength.

Technical Specifications for MBoss Pattern Carbon Fiber Fabric:

• Fiber: 3K Multifilament Continuous Tow

• Fabric Weight: 6 oz/sq yd

• Fabric Width: 50"

• Pattern: MBoss (Contemporary)

• Color: Black

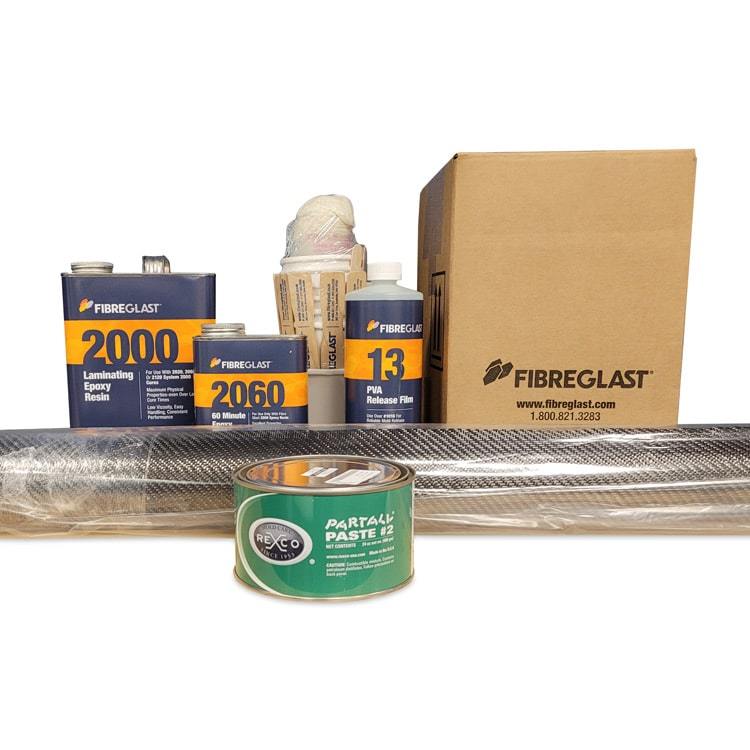

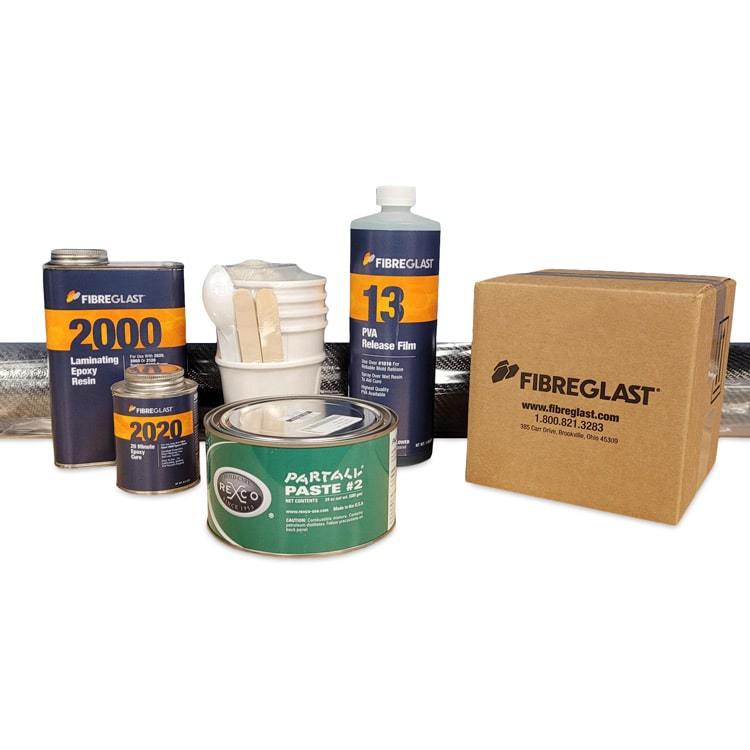

Available in 1-yard (#1208-A), 3-yard (#1208-B), 5-yard (#1208-C) prepacks, cut-to-length (#1208, min 10 yd), and full rolls (#1208-F, 25 yards). Small Kit (#3038-A) and Large Kit (#3038-B) also available. The Large Kit includes 5 yards of MBoss pattern and 5 yards of 2x2 twill.

Fibre Glast is committed to ensuring that every roll of fabric is First Quality and manufactured to the highest standards.
