Video Inspection Camera - Recordable

Ideal for Inspecting Aircraft, Automobiles and Piping Systems

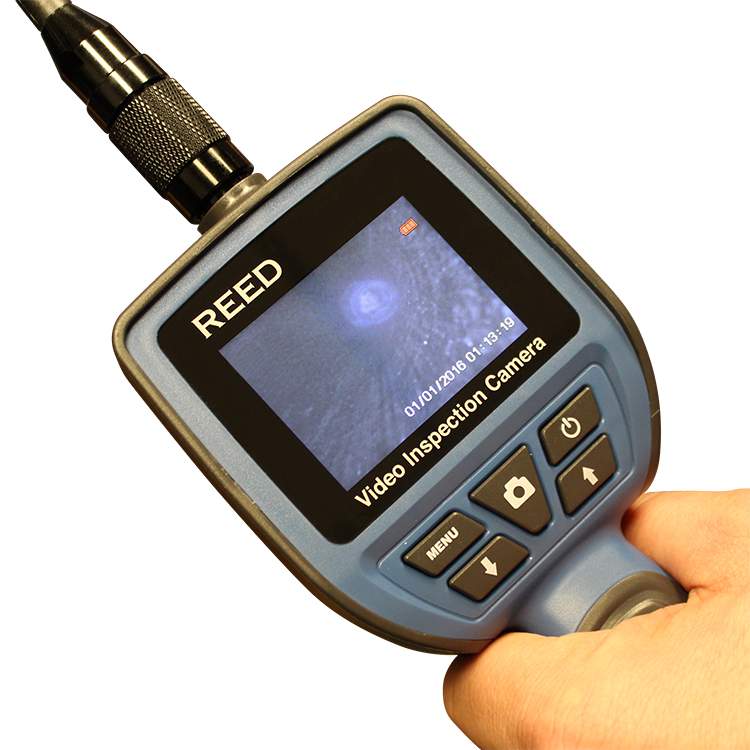

Our Video Inspection Camera allows you to inspect hard to reach places such as composite vessels, tubes and piping in a non-destructive manner. It features a 39" gooseneck cable with 9mm camera. The gooseneck design allows the video cable to retain its configured shape when in use. The 9mm camera is waterproof and features 4 high visibility LED lights to provide illumination in dimly lit environments. The high-resolution camera feed is displayed on the 2.5" LCD color monitor. The Video Inspection Camera also features a comfortable pistol grip handle design for easy use. A camera mountable magnet and a hook-and-mirror set to assist with specific applications are included.

Features

• Camera and video functions save high resolution images and video
• Comfortable pistol grip design
• High resolution 2.5" color LCD monitor
• 9mm waterproof (IP67) camera head
• Gooseneck cable retains configured shape
• Four high visibility LED lights provide illumination in dimly lit environments
• 180° mirror rotation function
• Low battery indicator and auto shut off

Specifications

Camera
Lens Sensor Resolution	640 x 480
Camera Diameter	0.35" (9mm)
Short Distance Focus	1.18 to 2.36" (3 to 6cm)
Depth of Field	10mm to infinity
Viewing Angle	0 to 180°
General Specifications
Operating Temperature	14 to 122°F (-10 to 50°C)
Storage Temperature	14 to 113°F (-10 to 45°C)
Operating Humidity Range	15 to 85%
Dimensions	6 x 3 x 2" (152 x 76 x 51 mm)
Weight	12.7oz (359g)
Display	2.5" Color TFT LCD
Display Resolution	480 x 240
Frames per Second (FPS)	30
Gooseneck/Cable Length	39" (1m)
Rotate Display	Yes (180°)
Playback	Photo (JPEG) and Video (AVI)
Digital Zoom	4x
Memory	SD Card
Time and Date Stamp	Yes
Data Output	USB / SD Card
LED Brightness Adjustment	Yes (4 white LEDs)
Low Battery Indicator	Yes
Power Supply	4 AA Batteries
Auto Power Off	Yes (after 10 minutes)
On-Screen Supported Languages	English, German, French, Spanish
Product Certifications	CE, RoHS, IP67 (Camera Head)

Guarantee

1 Year Manufacturer Defect Warranty

This item, when ordered alone, will typically ship in a small box. Where possible, we will combine ordered items to reduce the number of boxes shipped.

The Video Inspection Camera is sold by the unit.
