Unidirectional Carbon Fabric (22.3 oz)

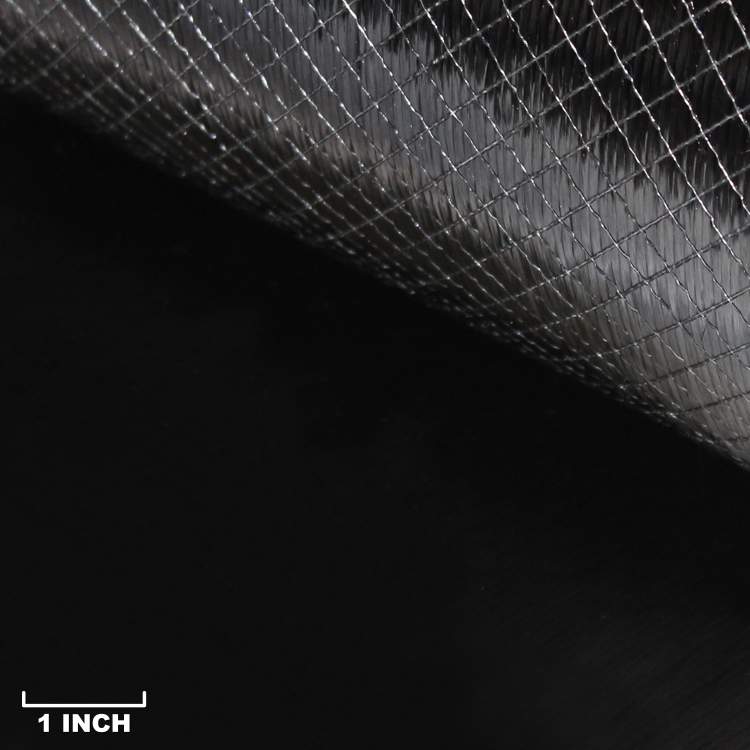

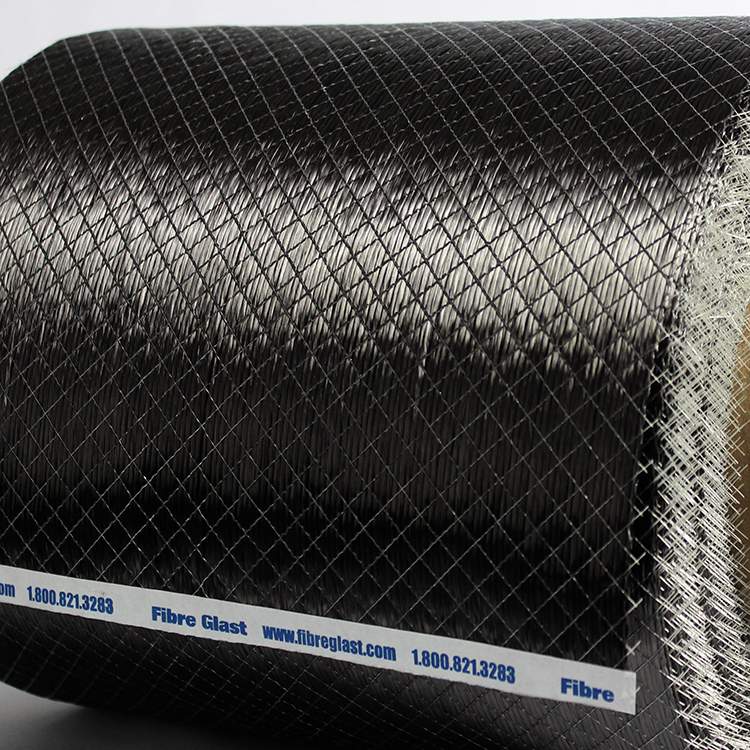

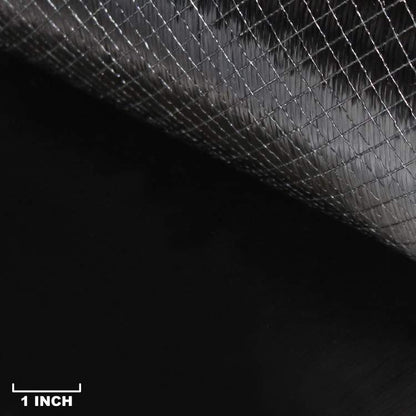

This unique unidirectional fabric is made from a standard modulus fiber and weighs in at 22.3 oz/sq yd. It is non-woven, so there is no crimping of the fibers and only minimal polyester binder is used in a quilted pattern to take full potential of the increased fabric thickness. This provides maximum possible strength in one direction with minimal layers.

The 22.3 oz/sq yd is used in structural and architectural applications such as bridges, building renovations, and can be used in marine and aerospace applications requiring extreme strength.

Unidirectional Carbon Fabric (22.3 oz) Features

• Unidirectional fabrics add strength in just one direction.
• Standard modulus fiber with a tensile modulus of 33.4 MSi
• 12" wide fabric lays up seamlessly side-by-side
• Wets out easily, but will require more attention than thinner fabrics
• Fatigue resistance for durable strength

Unidirectional Carbon Fabric (22.3 oz) Tips

• Ideal for structural parts where maximum single directional properties are critical, like bridges, support structures, renovations, and more.
• If your application calls for higher strength properties at a light weight fabric, consider our #2596 Unidirectional Fabric, a 4.3-ounce IM fabric.
• To maximize strength properties, use with an epoxy, like our System 2000 Epoxy Resin (#2000).

Unidirectional Carbon Fabric (22.3 oz) Specifications

Type	24K Carbon Multifilament Continuous Tow
Fiber Strength	696-725 KSI
Fiber Tensile Modulus	32.7-34.1 MSI
Weave	Unidirectional (non-woven)
Weight	21.9-22.7 oz/sq yd (756 gsm)
Thickness	0.030"
Full Roll Length	100 yards (typical)
Color	Black

Fibre Glast Guarantee

Fibre Glast is committed to ensuring that every roll of fabric we handle is First Quality and manufactured to the highest standards, so that you can expect the same properties and handling characteristics every time you order.

Click here for more information on our First Quality Guarantee.

What is Unidirectional Carbon Fabric (22.3 oz)?

The Unidirectional Carbon Fabric (#2595) from Fibre Glast is the heaviest weight unidirectional carbon reinforcement in the lineup. This unique fabric is made from a standard modulus fiber and weighs in at 22.3 oz/sq yd. It is non-woven, so there is no crimping of the fibers and only minimal polyester binder is used in a quilted pattern to take full potential of the increased fabric thickness. This provides maximum possible strength in one direction with minimal layers.

The 22.3 oz/sq yd is used in structural and architectural applications such as bridges, building renovations, and can be used in marine and aerospace applications requiring extreme strength.

What Are the Best Applications for 22.3 oz Unidirectional Carbon?

Ideal for structural parts where maximum single directional properties are critical, like bridges, support structures, renovations, and more. If your application calls for higher strength properties at a lighter weight, consider the #2596 Unidirectional Fabric, a 4.3-ounce IM fabric. To maximize strength properties, use with an epoxy resin such as Fibre Glast System 2000 Epoxy (#2000). The fabric wets out easily but will require more attention than thinner fabrics.

Available in 1-yard (#2595-A), 3-yard (#2595-B), 5-yard (#2595-C) prepacks, and cut-to-length (#2595, min 10 yd).
