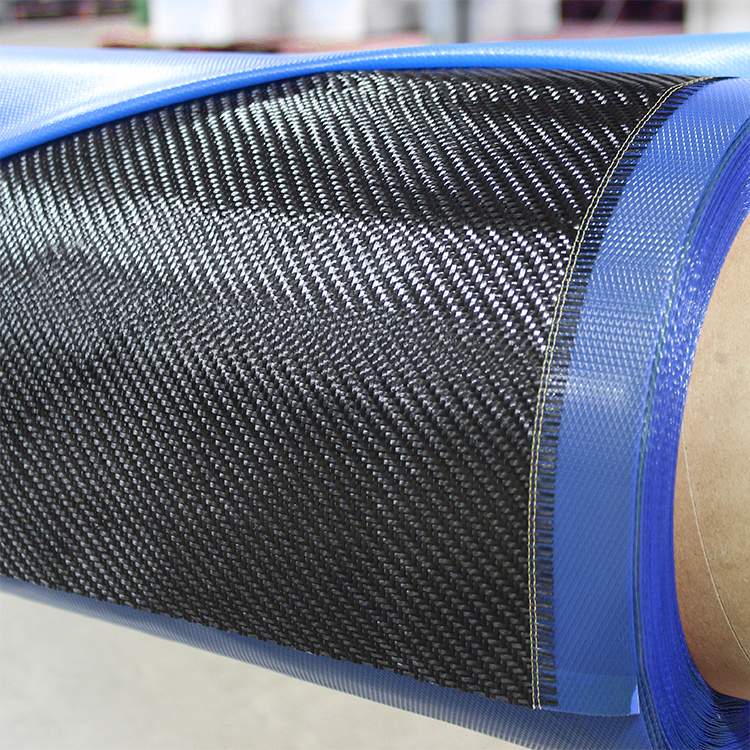

Prepreg 3K, 2x2 Twill Weave Carbon

This prepreg carbon fabric features our most popular twill weave carbon, pre-impregnated with an epoxy resin system. The near-perfect resin content (37%, +/- 3%) maximizes the strength properties of the carbon fabric. You don't have to worry about resin ratio, paving the way for repeatable, uniform parts.

The 3K tow fabric (3000 filaments per fiber) is similar to our part #1069,with an ultimate tensile strength of at least 510 KSI. As compared to plain weave counterparts, the 2x2 twill weave offers greater conformability and delivers a slight edge in strength.

• For and plain weave style of this fabric, see our item #2115.

Prepreg 3K, 2x2 Twill Weave Carbon Features

• Designed to be stored, shipped, and handled at room temperature—no refrigeration necessary
• Best-in-class prepreg carbon fiber provides unmatched strength to weight ratio
• Prepreg means Less mess and waste; solvent- and MDS-free
• Fire resistant material
• Twill weave provides signature aesthetics and ease of use
• 50" width is ideal for most layups

Prepreg 3K, 2x2 Twill Weave Carbon Tips

• Ideal for making high-strength, light weight parts that don't need to withstand high temperatures (up to 300°F)
• Three recommended ramp-up cure cycles, requiring at most 310°F
• 6 month shelf life at 75° does not require refrigeration
• For added conform-ability, lay up the fabric at a 45-degree bias inside molds.


Prepreg 3K, 2x2 Twill Weave Carbon Specifications

Warp	12-14, 3K
Filling	12-14, 3K
Strength	510-635 KSI
Tensile Modulus	33.6-34.9 MSI
Weave	2x2 Twill
Full Roll Length	100 yards
Thickness	0.012"
Color	Black
Fabric Weight	5.7 oz/sq yd

Fibre Glast Guarantee

Fibre Glast is committed to ensuring that every roll of fabric we handle is First Quality and manufactured to the highest standards, so that you can expect the same properties and handling characteristics every time you order.

Click here for more information on our First Quality Guarantee.

What is Prepreg 3K 2x2 Twill Weave Carbon?

The Prepreg 3K, 2x2 Twill Weave Carbon (#2211) from Fibre Glast features the most popular twill weave carbon pre-impregnated with an epoxy resin system. The near-perfect resin content (37%, +/- 3%) maximizes the strength properties of the carbon fabric without worrying about resin ratio, paving the way for repeatable, uniform parts.

The 3K tow fabric (3,000 filaments per fiber) is similar to the dry fabric #1069, with an ultimate tensile strength of at least 510 KSI. As compared to plain weave counterparts, the 2x2 twill weave offers greater conformability and delivers a slight edge in strength. For a plain weave style of this fabric, see item #2115.

Why Choose Prepreg Over Dry Fabric with Separate Resin?

Prepreg eliminates the need to mix and manually apply resin to dry fabric. Less mess and waste; solvent- and MDS-free. Designed to be stored, shipped, and handled at room temperature with no refrigeration necessary. 6-month shelf life at 75 degrees. The 50" width is ideal for most layups.

What Are the Best Applications for Prepreg Carbon?

Ideal for making high-strength, lightweight parts that do not need to withstand high temperatures (up to 300 degrees F).

How Should Prepreg Be Used for Best Results?

Three recommended ramp-up cure cycles, requiring at most 310 degrees F. For added conformability, lay up the fabric at a 45-degree bias inside molds.
