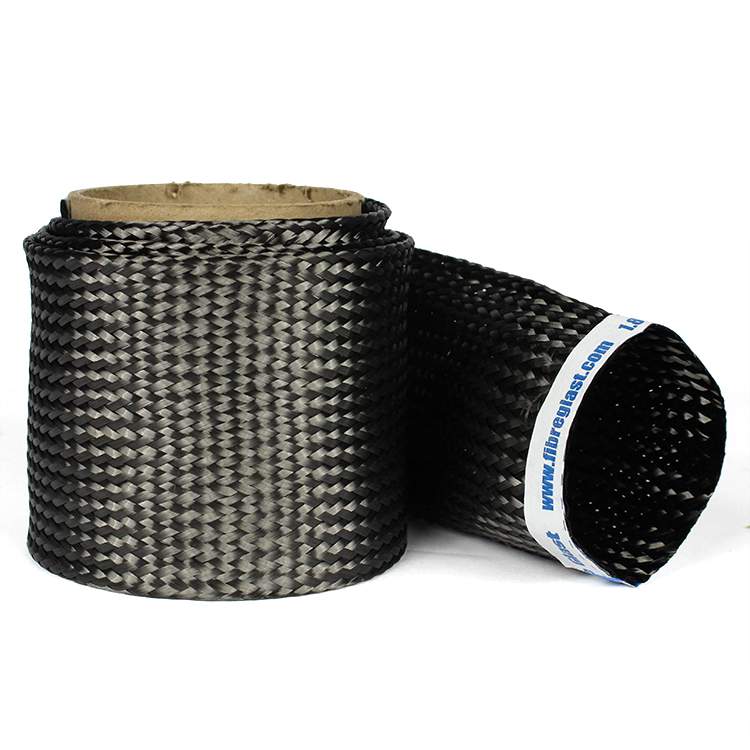

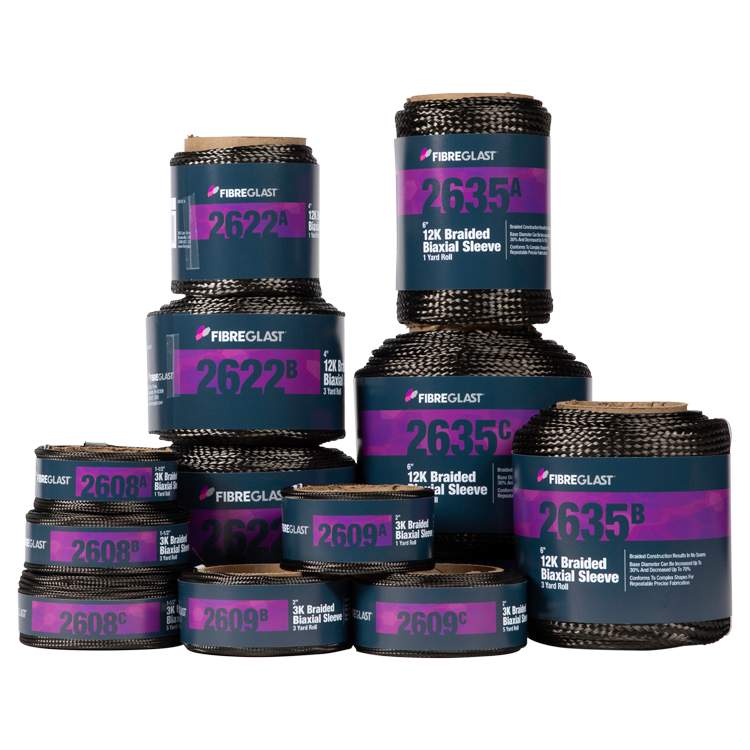

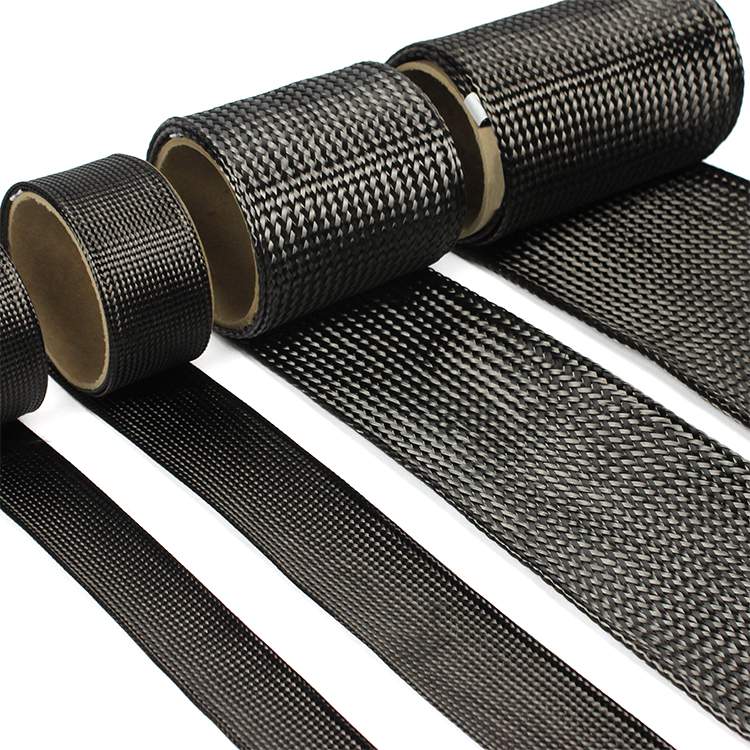

Braided Carbon Fiber Biaxial Sleeves

These braided carbon biaxial sleeves feature the desirable cosmetics of a 2x2 twill pattern. They can be slid over a prepared mandrel or cylinder to create straight or tapered tubing.

Braided sleeves will completely conform to the shape of products with changing geometries like prosthetics and hockey sticks, improving overall performance, minimizing weight, and maximizing the ultimate tensile strength of carbon.

Features

• 2x2 Twill weave for great conformability, strength and aesthetics
• 45° Angle twill weave orientation
• Wets out easily with resin
• Fatigue resistance for durable strength

Tips

• The sleeves can be increased from their base diameter up to 30% and decreased up to 70%. This means that our 2" sleeve can be used in a single application ranging from 0.6" to 2.6" in diameter.
• When expanded, a braided reinforcement works much like a shark's body, orienting itself to the direction of force. This actually strengthens its outer skin, enabling it to withstand pressure and carry load, and to tolerate damage and fatigue. If a puncture does occur, the sleeve provides a slow, controlled failure, rather than a more damaging and potentially dangerous blowup.
• Laying up sleeves is predictable, repeatable, and suitable for precise manufacture of composite parts. Braided sleeves are extremely resistant to cracks between layers, reducing the possibility of delaminating and increasing the strength of the product.
• To maximize the fiber properties, use with epoxy or vinyl ester resins.
• Polyester resin is also suitable, and is primarily used in cosmetic applications where higher strength-to-weight ratios are not a factor.

Specifications

Diameter	1.5" - 6"
Fabric Weight	8.3 - 14.5 oz/yd²
Tensile Strength	610-850 KSI
Tensile Modulus	31-41.5 MSI
Elongation	1.75-2.2%
