Resin Flows Easily for Vacuum Bagging

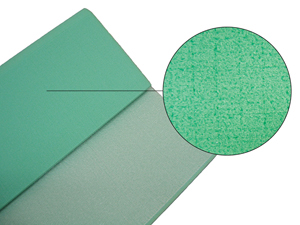

Divinymat has been engineered specifically for the resin infusion process and serves as both a sandwich core and a flow media.
Divinymat is a 3.8-pound per cubic foot DIAB Divinycell H foam. As a foam sandwich core, it provides the highest strength-for-density in its application range, which includes marine and land transportation, wind energy, civil engineering/infrastructure, and general industrial markets. It also delivers solid compressive and shear strength in both ambient and elevated temperatures.
Cross-scoring, as well as grooves and perforations, at the surface of the foam create controlled flow channels for resin during the infusion process. It offers the highest structural properties of any available flow media.
- Bonded to a light scrim cloth at its back, allowing it to conform to most simple curves and shapes
- Compatible with epoxy, polyester, and vinyl ester resins
- Features chemical resistance, low water absorption, and good thermal/acoustic insulation
- Store out of direct sunlight
Divinymat is sold by the sheet (32" x 48") and is 1⁄8" thick.
